LT1120A, Micropower Regulator with Comparator and Shutdown

LT1120A Micropower Regulator with Comparator and Shutdown U U .

LT1120A_LinearTechnology.pdf

LT1120A Datasheet Preview — Preview of LT1120A PDF

Datasheet Details

Part number:

LT1120A

Manufacturer:

Linear Technology

File Size:

155.96 KB

Description:

Micropower Regulator with Comparator and Shutdown

Features

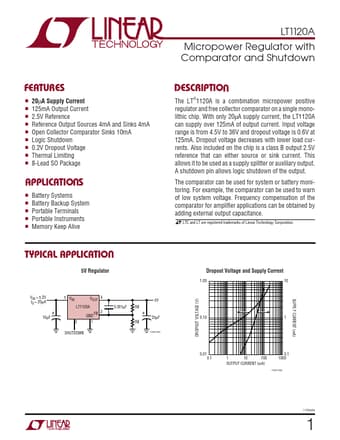

* s 20µA Supply Current s 125mA Output Current s 2.5V Reference s Reference Output Sources 4mA and Sinks 4mA s Open Collector Comparator Sinks 10mA s Logic Shutdown s 0.2V Dropout Voltage s Thermal Limiting s 8-Lead SO Package U APPLICATIO S s Battery Systems s Battery Backup System s Portable Termina

Applications

* can be obtained by adding external output capacitance. , LTC and LT are registered trademarks of Linear Technology Corporation. SUPPLY CURRENT (mA) TYPICAL APPLICATIO 5V Regulator VIN > 5.2V IQ = 20µA + 10µF 5 VIN VOUT 4 LT1120A GND FB 2 31 SHUTDOWN 0.001µF 1M + 1M 5V 25µF 1120A TA01 DRO
