LT1122

JFET Input Operational Amplifier

LT1122 Features

* n 100% Tested Settling Time 340ns Typ to 1mV at Sum Node, 10V Step 540ns Max Tested with Fixed Feedback Capacitor n Slew Rate 60V/µs Min n Gain-Bandwidth Product 14MHz n Power Bandwidth (20VP-P) 1.2 MHz n Unity-Gain Stable; Phase Margin 60° n Input Offset Voltage

LT1122 General Description

The LT®1122 JFET input operational amplifier combines high speed and precision performance. A unique poly-gate JFET process minimizes gate series resistance and gate-to-drain capacitance, facilitating wide bandwidth performance,.

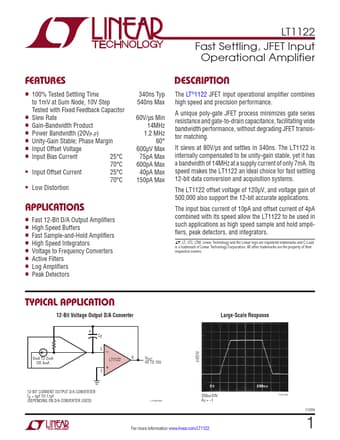

LT1122 Datasheet (262.53 KB)

Preview of LT1122 PDF

Datasheet Details

Part number:

LT1122

Manufacturer:

Linear

File Size:

262.53 KB

Description:

Jfet input operational amplifier.
