LT1300 - Micropower High Efficiency 3.3/5V Step-Up DC/DC Converter

Datasheet Summary

Description

The LT1300 is a micropower step-up DC/DC converter that utilizes Burst Mode™ operation.

The device can deliver 5V or 3.3V from a two-cell battery input.

Features

  • s s s s s s s s s s s.

📥 Download Datasheet

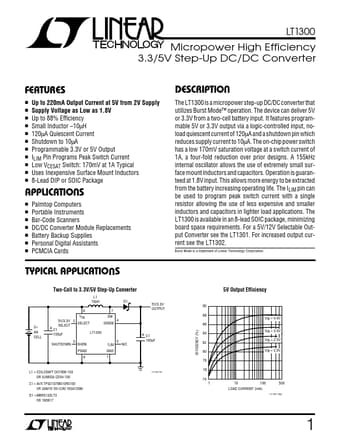

Datasheet preview – LT1300

Datasheet Details

Part number LT1300
Manufacturer Linear Technology
File Size 242.59 KB
Description Micropower High Efficiency 3.3/5V Step-Up DC/DC Converter
Datasheet download datasheet LT1300 Datasheet
Additional preview pages of the LT1300 datasheet.

📁 Similar Datasheet

Other Datasheets by Linear Technology
  • LT1301 - Micropower High Efficiency 5V/12V Step-Up DC/DC Converter
  • LT1302 - Micropower High Output Current Step-Up Adjustable and Fixed 5V DC/DC Converters
  • LT1302-5 - Micropower High Output Current Step-Up Adjustable and Fixed 5V DC/DC Converters
  • LT1303 - Micropower High Efficiency DC/DC Converters with Low-Battery Detector Adjustable and Fixed 5V
  • LT1303-5 - Micropower High Efficiency DC/DC Converters with Low-Battery Detector Adjustable and Fixed 5V
  • LT1304 - Micropower DC/DC Converters with Low-Battery Detector Active in Shutdown
  • LT1304-3.3 - Micropower DC/DC Converters with Low-Battery Detector Active in Shutdown
  • LT1304-5 - Micropower DC/DC Converters with Low-Battery Detector Active in Shutdown

Full PDF Text Transcription

Click to expand full text
LT1300 Micropower High Efficiency 3.3/5V Step-Up DC/DC Converter FEATURES s s s s s s s s s s s DESCRIPTION The LT1300 is a micropower step-up DC/DC converter that utilizes Burst Mode™ operation. The device can deliver 5V or 3.3V from a two-cell battery input. It features programmable 5V or 3.3V output via a logic-controlled input, noload quiescent current of 120µA and a shutdown pin which reduces supply current to 10µA. The on-chip power switch has a low 170mV saturation voltage at a switch current of 1A, a four-fold reduction over prior designs. A 155kHz internal oscillator allows the use of extremely small surface mount inductors and capacitors. Operation is guaranteed at 1.8V input. This allows more energy to be extracted from the battery increasing operating life.
