LT1304-5.0V - MICROPOWER DC/DC CONVERTERS

This page provides the datasheet information for the LT1304-5.0V, a member of the LT1304 MICROPOWER DC/DC CONVERTERS family.

Datasheet Summary

Description

The UTC LT1304 is a micropower step-up DC/DC converter ideal for use in small, low voltage, battery-operated systems.

The devices operate from a wide input supply range of 1.5V to 8V.

Features

  • 5V at 200mA from two cells.
  • 10μA quiescent current in shutdown.
  • Operates with VIN as low as1.5V.
  • Low battery detector active in shutdown.
  • Low switch VCESAT:370mV at 1A typical.
  • 120μA quiescent current in active mode.
  • Switching frequency up to 300kHz.
  • Programmable peak current with one resistor. . www. DataSheet4U. com.

📥 Download Datasheet

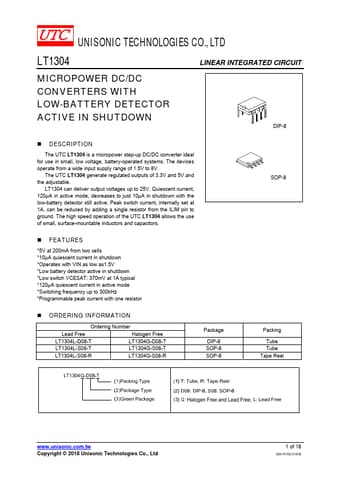

Datasheet preview – LT1304-5.0V

Datasheet Details

Part number LT1304-5.0V
Manufacturer UTC
File Size 355.99 KB
Description MICROPOWER DC/DC CONVERTERS
Datasheet download datasheet LT1304-5.0V Datasheet
Additional preview pages of the LT1304-5.0V datasheet.

📁 Similar Datasheet

  • LT1304-5 - Micropower DC/DC Converters with Low-Battery Detector Active in Shutdown (Linear Technology)
  • LT1304-3.3 - Micropower DC/DC Converters with Low-Battery Detector Active in Shutdown (Linear Technology)
  • LT1304 - Micropower DC/DC Converters with Low-Battery Detector Active in Shutdown (Linear Technology)
  • LT1300 - Micropower High Efficiency 3.3/5V Step-Up DC/DC Converter (Linear Technology)
  • LT1301 - Micropower High Efficiency 5V/12V Step-Up DC/DC Converter (Linear Technology)
  • LT1302 - Micropower High Output Current Step-Up Adjustable and Fixed 5V DC/DC Converters (Linear Technology)
  • LT1302-5 - Micropower High Output Current Step-Up Adjustable and Fixed 5V DC/DC Converters (Linear Technology)
  • LT1303 - Micropower High Efficiency DC/DC Converters with Low-Battery Detector Adjustable and Fixed 5V (Linear Technology)
  • LT1303-5 - Micropower High Efficiency DC/DC Converters with Low-Battery Detector Adjustable and Fixed 5V (Linear Technology)
  • LT1305 - Micropower High Power DC/DC Converter with Low-Battery Detector (Linear Technology)
Other Datasheets by UTC

Full PDF Text Transcription

Click to expand full text
UTC LT1304/LT1304-3.3V/LT1304-5.0V LINEAR INTEGRATED CIRCUIT MICROPOWER DC/DC CONVERTERS WITH LOW-BATTERY DETECTOR ACTIVE IN SHUTDOWN DESCRIPTION The UTC LT1304 is a micropower step-up DC/DC converter ideal for use in small, low voltage, battery-operated systems. The devices operate from a wide input supply range of 1.5V to 8V. The UTC LT1304-3.3 and LT1304-5.0 generate regulated outputs of 3.3V and 5V and the adjustable LT1304 can deliver output voltages up to 25V.Quiescent current,120 μ A in active mode, decreases to just 10 μ A in shutdown with the low-battery detector still active. Peak switch current, internally set at 1A,can be reduced by adding a single resistor from the ILIM pin to ground.
