LT1302-5, LT1, Micropower High Output Current Step-Up Adjustable and Fixed 5V DC/DC Converters

LT1302/LT1302-5 Micropower High Output Current Step-Up Adjustable and Fixed 5V DC/DC Converters .

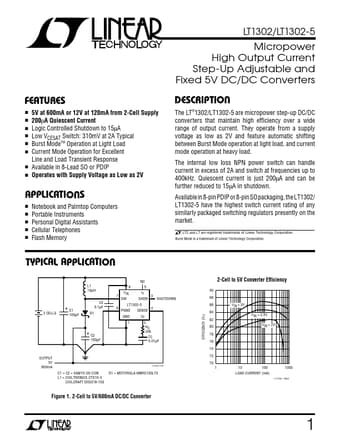

datasheet Preview Page 1 from Datasheet4u.com

LT1-302.pdf

LT1302-5 Datasheet Preview — This datasheet PDF includes multiple part numbers: LT1302-5, LT1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LT1302-5, LT1

Manufacturer:

Linear Technology

File Size:

360.03 KB

Description:

Micropower High Output Current Step-Up Adjustable and Fixed 5V DC/DC Converters

Note:

This datasheet PDF includes multiple part numbers: LT1302-5, LT1.
Please refer to the document for exact specifications by model.

Features

* s s s s s s DESCRIPTIO s s 5V at 600mA or 12V at 120mA from 2-Cell Supply 200µA Quiescent Current Logic Controlled Shutdown to 15µA Low VCESAT Switch: 310mV at 2A Typical Burst ModeTM Operation at Light Load Current Mode Operation for Excellent Line and Load Transient Response Available in 8-Lead

Applications

* Information section. VIN (Pin 6): Supply Pin. Must be bypassed with: (1) a 0.1µF ceramic to GND, and (2) a large value electrolytic to PGND. When VIN is greater than 5V, a low value resistor (2Ω to 10Ω) is recommended to isolate the VIN pin from input supply noise. 4 U W 75 1302 G10 Oscillator Fr
