LT1304-3.3V, LT1304 MICROPOWER DC/DC CONVERTERS

LT1304-3.3V Description

UTC LT1304/LT1304-3.3V/LT1304-5.0V LINEAR INTEGRATED CIRCUIT MICROPOWER DC/DC CONVERTERS WITH LOW-BATTERY DETECTOR ACTIVE IN SHUTDOWN .
The UTC LT1304 is a micropower step-up DC/DC converter ideal for use in small, low voltage, battery-operated systems.

LT1304-3.3V Features

* 5V at 200mA from two cells.
* 10μA quiescent current in shutdown.
* Operates with VIN as low as1.5V
* Low battery detector active in shutdown
* Low switch VCESAT:370mV at 1A typical.
* 120μA quiescent current in active mode.
* Switching frequency up to 300kHz
* Programmable

LT1304-3.3V Applications

* 2-,3-,or 4-cell to 5V or 3.3V step-up
* Portable instruments
* Bar code scanners
* Palmtop computers
* Diagnostic medical instrumentation.
* Personal data communicators/computers. PIN CONFIGURATION LBI LBO V IN SW 1 2 3 4 8 7 6 5 FB(SENSE)
* SHDN IL I M GND UTC UNISONIC

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LT1304-3.3V, LT1304. Please refer to the document for exact specifications by model.

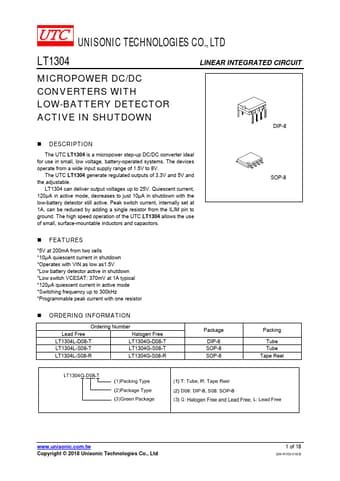

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LT1304-3.3V, LT1304
Manufacturer
UTC
File Size
355.99 KB
Datasheet
LT1304_UTC.pdf
Description
MICROPOWER DC/DC CONVERTERS
Note
This datasheet PDF includes multiple part numbers: LT1304-3.3V, LT1304.
Please refer to the document for exact specifications by model.
