LT1374 Datasheet, Regulator, Linear Technology

LT1374 Features

  • Regulator s s s s s s s s DESCRIPTIO Constant 500kHz Switching Frequency Easily Synchronizable Uses All Surface Mount Components Inductor Size Reduced to 1.8µH Saturating Switch Design: 0.07Ω E

PDF File Details

Part number:

LT1374

Manufacturer:

Linear Technology

File Size:

261.61kb

Download:

📄 Datasheet

Description:

4.5a/ 500khz step-down switching regulator.

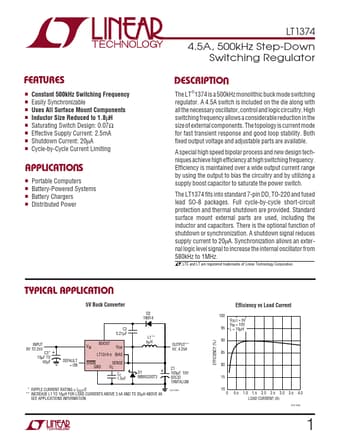

Datasheet Preview: LT1374 📥 Download PDF (261.61kb)
Page 2 of LT1374 Page 3 of LT1374

LT1374 Application

  • Applications INFORMATION U Efficiency vs Load Current VOUT = 5V VIN = 10V L = 10µH 1374 TA02 U 1 LT1374 ABSOLUTE MAXIMUM RATINGS (Note 1) Input
