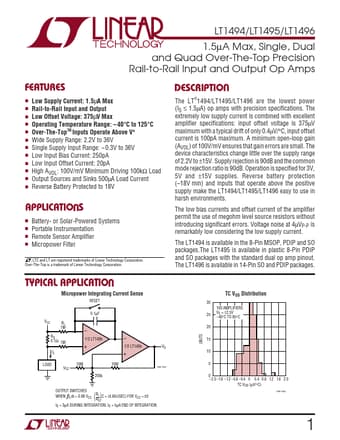

LT1494 - Rail-to-Rail Input and Output Op Amps

Linear Technology

Datasheet Details

Part number	LT1494
Manufacturer	Linear ↗ Technology
File Size	243.17 KB
Description	Rail-to-Rail Input and Output Op Amps
Datasheet	LT1494-LinearTechnology.pdf

s Low Supply Current: 1.5µA Max s Rail-to-Rail Input and Output s Low Offset Voltage: 375µV Max s Operating Temperature Range:.
40°C to 125°C s Over-The-TopTM Inputs Operate Above V+ s Wide Supply Range: 2.2V to 36V s Single Supply Input Range:.
0.3V to 36V s Low Input Bias Current: 250pA s Low Input Offset Current: 20pA s High AVOL: 100V/mV Minimum Driving 100kΩ Load s Output Sources and Sinks 500µA Load Current s Reverse Battery Protected to 18V U.
