LT3595, 16 Channel Buck Mode LED Driver

www.DataSheet4U.com LT3595 16 Channel Buck Mode LED Driver .
The LT®3595 is a high performance LED Driver designed to drive sixteen independent channels of up to 10 LEDs at currents up to 50mA.

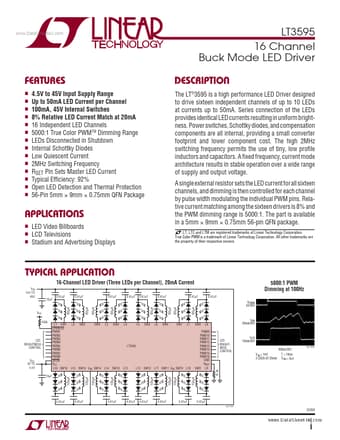

datasheet Preview Page 1 from Datasheet4u.com

LT3595_LinearTechnology.pdf

LT3595 Datasheet Preview — Preview of LT3595 PDF

Datasheet Details

Part number:

LT3595

Manufacturer:

Linear Technology

File Size:

402.05 KB

Description:

16 Channel Buck Mode LED Driver

Features

* 4.5V to 45V Input Supply Range Up to 50mA LED Current per Channel 100mA, 45V Internal Switches 8% Relative LED Current Match at 20mA 16 Independent LED Channels 5000:1 True Color PWMTM Dimming Range LEDs Disconnecte

Applications

* LED Video Billboards LCD Televisions Stadium and Advertising Displays TYPICAL APPLICATION 16-Channel LED Driver (Three LEDs per Channel), 20mA Current VIN 15V TO 45V 10μF 0.47μF 0.47μF 0.47μF 0.47μF 0.47μF 0.47μF 0.47μF 0.47μF VPWM 5V/DIV 5000:1 PWM Dimming at 100Hz 100μH 100μ
