LTC1091, LTC 1-/ 2-/ 6- and 8-Channel/ 10-Bit Serial I/O Data Acquisition Systems

Linear Technology

Description

LTC1091/LTC1092 LTC1093/LTC1094 1-, 2-, 6- and 8-Channel, 10-Bit Serial I/O Data Acquisition Systems .

📥 Download Datasheet

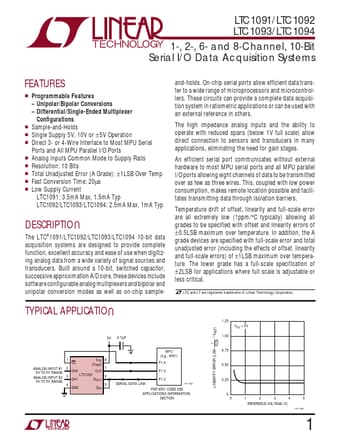

LTC1091 Datasheet Preview — This datasheet PDF includes multiple part numbers: LTC1091, LTC. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: LTC1091, LTC
Manufacturer: Linear Technology
File Size: 356.67 KB
Datasheet: LTC-1091.pdf
Description: 1-/ 2-/ 6- and 8-Channel/ 10-Bit Serial I/O Data Acquisition Systems
Note: This datasheet PDF includes multiple part numbers: LTC1091, LTC.
Please refer to the document for exact specifications by model.

Features

* s s s s s s s s s Programmable Features
* Unipolar/Bipolar Conversions
* Differential/Single-Ended Multiplexer Configurations Sample-and-Holds Single Supply 5V, 10V or ± 5V Operation Direct 3- or 4-Wire Interface to Most MPU Serial Ports and All MPU Parallel I/O Ports Analog Input

Applications

* or can be used with an external reference in others. The high impedance analog inputs and the ability to operate with reduced spans (below 1V full scale) allow direct connection to sensors and transducers in many applications, eliminating the need for gain stages. An efficient serial port communicat
