LTC1098L, LTC1096 - Micropower Sampling 8-Bit Serial I/O A/D Converters

LTC1098L Description

LTC1096/LTC1096L LTC1098/LTC1098L Micropower Sampling 8-Bit Serial I/O A/D Converters .
The LTC®1096/LTC1096L/LTC1098/LTC1098L are micropower, 8-bit A/D converters that draw only 80μA of supply current when converting.

LTC1098L Features

* n 80μA Maximum Supply Current n 1nA Typical Supply Current in Shutdown n 5V Operation (LTC1096/LTC1098) n 3V Operation (LTC1096L/LTC1098L)(2.65V Min) n Sample-and-Hold n 16μs Conversion Time n 33kHz Sample Rate n ±0.5LSB Total Unadjusted Error Over Temp n Direct 3-Wire Interface to Most MPU Serial P

LTC1098L Applications

* n Battery-Operated Systems n Remote Data Acquisition n Battery Monitoring n Battery Gas Gauges n Temperature Measurement n Isolated Data Acquisition L, LT, LTC and LTM are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners. DESCR

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LTC1098L, LTC1096. Please refer to the document for exact specifications by model.

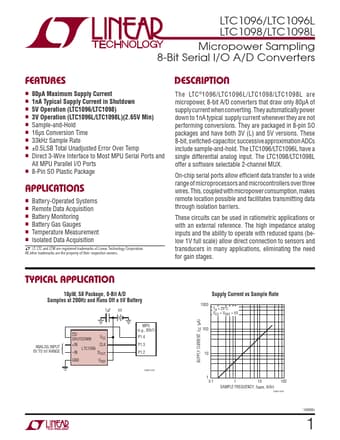

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LTC1098L, LTC1096
Manufacturer
Linear
File Size
278.50 KB
Datasheet
LTC1096-Linear.pdf
Description
Micropower Sampling 8-Bit Serial I/O A/D Converters
Note
This datasheet PDF includes multiple part numbers: LTC1098L, LTC1096.
Please refer to the document for exact specifications by model.
