LTC1064-3 - 8th Order Linear Phase Lowpass Filter

Datasheet Summary

Features

  • 8th Order Filter in a 14-Pin Package.
  • 95kHz Maximum Corner Frequency.
  • No External Components.
  • 75:1, 150:1 and 120:1 Clock to Cutoff Frequency Ratio.
  • 60µVRMS Total Wideband Noise.
  • 0.03% THD or Better.
  • Operates from ±2.37V to ±8V Power Supplies.
  • Low Total Output DC Offset U.

📥 Download Datasheet

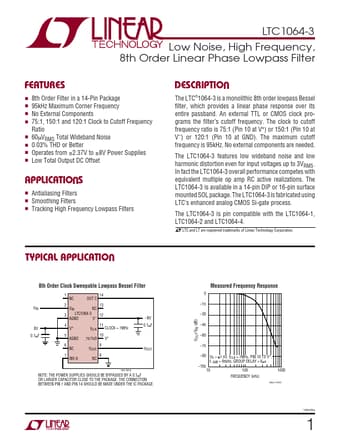

Datasheet preview – LTC1064-3

Datasheet Details

Part number LTC1064-3
Manufacturer Linear
File Size 141.95 KB
Description 8th Order Linear Phase Lowpass Filter
Datasheet download datasheet LTC1064-3 Datasheet
Additional preview pages of the LTC1064-3 datasheet.

📁 Similar Datasheet

  • LTC1064-1 - Low Noise/8th Order Clock Sweepable Elliptic Lowpass Filter (Linear Technology)
  • LTC1064-2 - Low Noise/ High Frequency/ 8th Order Butterworth Lowpass Filter (Linear Technology)
  • LTC1064-4 - Low Noise/8th Order/ Clock Sweepable Cauer Lowpass Filter (Linear Technology)
  • LTC1064-7 - Linear Phase/ 8th Order Lowpass Filter (Linear Technology)
  • LTC1064 - Low Noise/ Fast/ Quad Universal Filter Building Block (Linear Technology)
  • LTC1060 - Universal Dual Filter Building Block (Linear Technology)
  • LTC1060CS - Universal Dual Filter Building Block (Linear Technology)
  • LTC1061 - High Performance Triple Universal Filter Building Block (Linear Technology)
  • LTC1061CS - High Performance Triple Universal Filter Building Block (Linear Technology)
  • LTC1062 - 5th Order Lowpass Filter (Linear Technology)
Other Datasheets by Linear
  • LTC1068 - Filter Building Blocks
  • LTC1051 - Dual/Quad Precision Zero-Drift Operational Amplifiers
  • LTC1096 - Micropower Sampling 8-Bit Serial I/O A/D Converters
  • LTC1096L - Micropower Sampling 8-Bit Serial I/O A/D Converters
  • LTC1098 - Micropower Sampling 8-Bit Serial I/O A/D Converters
  • LTC1098L - Micropower Sampling 8-Bit Serial I/O A/D Converters
  • LTC1099 - High Speed 8-Bit A/D Converter
  • LTC1403-1 - 2.8Msps Sampling ADCs

Full PDF Text Transcription

Click to expand full text
U U LTC1064-3 Low Noise, High Frequency, 8th Order Linear Phase Lowpass Filter FEATURES ■ 8th Order Filter in a 14-Pin Package ■ 95kHz Maximum Corner Frequency ■ No External Components ■ 75:1, 150:1 and 120:1 Clock to Cutoff Frequency Ratio ■ 60µVRMS Total Wideband Noise ■ 0.03% THD or Better ■ Operates from ±2.37V to ±8V Power Supplies ■ Low Total Output DC Offset U APPLICATIO S ■ Antialiasing Filters ■ Smoothing Filters ■ Tracking High Frequency Lowpass Filters DESCRIPTIO The LTC®1064-3 is a monolithic 8th order lowpass Bessel filter, which provides a linear phase response over its entire passband. An external TTL or CMOS clock programs the filter’s cutoff frequency. The clock to cutoff frequency ratio is 75:1 (Pin 10 at V+) or 150:1 (Pin 10 at V–) or 120:1 (Pin 10 at GND).
