LTC1061 - High Performance Triple Universal Filter Building Block

This page provides the datasheet information for the LTC1061, a member of the LTC High Performance Triple Universal Filter Building Block family.

Datasheet Summary

Features

  • Three Filters in a Single Package.
  • Up to 6th Order Filter Functions.
  • Center Frequency Range up to 35kHz.
  • fO × Q Product up to 1MHz.
  • Guaranteed Center Frequency and Q Accuracy Over Temperature.
  • Guaranteed Low Offset Voltages Over Temperature.
  • 90dB Signal-to-Noise Ratio.
  • Operation from Single 4.7V Supply, Up to ±8V.
  • Guaranteed Filter Specifications with ±5V Supply and ±2.37V Supply.
  • Low Power Consumption with Single 5V Supply.
  • Clock Inputs T2.

📥 Download Datasheet

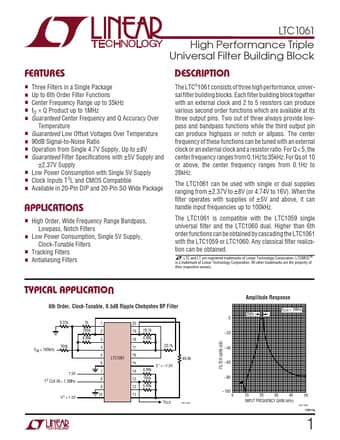

Datasheet preview – LTC1061

Datasheet Details

Part number LTC1061
Manufacturer Linear Technology
File Size 307.91 KB
Description High Performance Triple Universal Filter Building Block
Datasheet download datasheet LTC1061 Datasheet
Additional preview pages of the LTC1061 datasheet.

📁 Similar Datasheet

  • LTC1064-3 - 8th Order Linear Phase Lowpass Filter (Linear)
  • LTC1068 - Filter Building Blocks (Linear)
  • LTC1000-S - Current Transducer (LEM)
  • LTC1000-SF - Current Transducer (LEM)
  • LTC1000-SFC - Current Transducer (LEM)
  • LTC1000-T - Current Transducer (LEM)
  • LTC1044 - Switched Capacitor Voltage Converter (Analog Devices)
  • LTC1051 - Dual/Quad Precision Zero-Drift Operational Amplifiers (Linear)
  • LTC1052 - Chopper-Stabilized Operational Amplifier (Texas Instruments)
  • LTC1054 - Switched Capacitor Voltage Converter (Linear Technology Corporation)
Other Datasheets by Linear Technology
  • LTC1061CS - High Performance Triple Universal Filter Building Block
  • LTC1060 - Universal Dual Filter Building Block
  • LTC1060CS - Universal Dual Filter Building Block
  • LTC1062 - 5th Order Lowpass Filter
  • LTC1063 - DC Accurate/ Clock-Tunable 5th Order Butterworth Lowpass Filter
  • LTC1064 - Low Noise/ Fast/ Quad Universal Filter Building Block
  • LTC1064-1 - Low Noise/8th Order Clock Sweepable Elliptic Lowpass Filter
  • LTC1064-2 - Low Noise/ High Frequency/ 8th Order Butterworth Lowpass Filter

Full PDF Text Transcription

Click to expand full text
U U LTC1061 High Performance Triple Universal Filter Building Block FEATURES ■ Three Filters in a Single Package ■ Up to 6th Order Filter Functions ■ Center Frequency Range up to 35kHz ■ fO × Q Product up to 1MHz ■ Guaranteed Center Frequency and Q Accuracy Over Temperature ■ Guaranteed Low Offset Voltages Over Temperature ■ 90dB Signal-to-Noise Ratio ■ Operation from Single 4.7V Supply, Up to ±8V ■ Guaranteed Filter Specifications with ±5V Supply and ±2.
