LTC1257 Complete Single Supply 12-Bit Voltage Output DAC

The LTC®1257 is a complete single supply, 12-bit voltage output D/A converter (DAC) in an SO-8 package. The LTC1257 includes an output buffer amplifier, 2.048V voltage reference and an easy to use 3-wire cascadable serial interface. An external reference can be used to override the internal referenc.

LTC1257 Features

* n 8-Pin SO Package n Buffered Voltage Output n Built-In 2.048V Reference n 500µV/LSB with 2.048V Full Scale n 1/2LSB Max DNL Error n Guaranteed 12-Bit Monotonic n 3-Wire Cascadable Serial Interface n Wide Single Supply Range: VCC = 4.75V to 15.75V n Low Power: ICC Typ = 350µA with 5V Supply AP

LTC-1257.pdf

This datasheet PDF includes multiple part numbers: LTC1257, LTC. Please refer to the document for exact specifications by model.

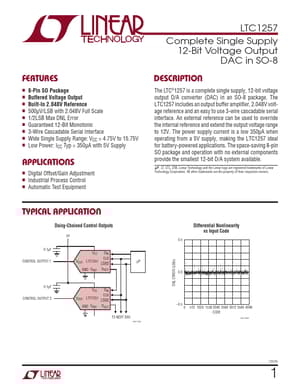

LTC1257 Datasheet Preview Page 2 LTC1257 Datasheet Preview Page 3

Datasheet Details

Part number:

LTC1257, LTC

Manufacturer:

Linear Technology

File Size:

201.01 KB

Description:

Complete single supply 12-bit voltage output dac.

Note:

This datasheet PDF includes multiple part numbers: LTC1257, LTC.
Please refer to the document for exact specifications by model.
