LTC1682/LTC1682-3.3/LTC1682-5 Doubler Charge Pumps with Low Noise Linear Regulator .

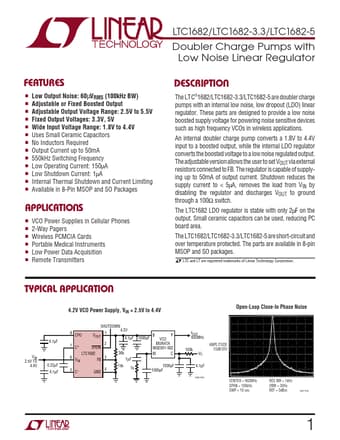

datasheet Preview Page 1 from Datasheet4u.com

LTC-1682.pdf

LTC1682-3.3 Datasheet Preview — This datasheet PDF includes multiple part numbers: LTC1682-3.3, LTC. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LTC1682-3.3, LTC

Manufacturer:

Linear Technology

File Size:

186.92 KB

Description:

Doubler Charge Pumps

Note:

This datasheet PDF includes multiple part numbers: LTC1682-3.3, LTC.
Please refer to the document for exact specifications by model.

Features

* s s s s s s s s s s s s s DESCRIPTIO Low Output Noise: 60µVRMS (100kHz BW) Adjustable or Fixed Boosted Output Adjustable Output Voltage Range: 2.5V to 5.5V Fixed Output Voltages: 3.3V, 5V Wide Input Voltage Range: 1.8V to 4.4V Uses Small Ceramic Capacitors No Inductors Required Output Current up t

Applications

* An internal doubler charge pump converts a 1.8V to 4.4V input to a boosted output, while the internal LDO regulator converts the boosted voltage to a low noise regulated output. The adjustable version allows the user to set VOUT via external resistors connected to FB. The regulator is capable of su
