LTC1687 - 52Mbps Precision Delay RS485 Fail-Safe Transceivers

LTC1687 Description

LTC1686/LTC1687 52Mbps Precision Delay RS485 Fail-Safe Transceivers .
The LTC®1686/LTC1687 are high speed, precision delay, full-duplex RS485 transceivers that can operate at data rates as high as 52Mbps.

LTC1687 Applications

* s s s s s High Speed RS485/RS422 Full Duplex Transceivers Level Translator Backplane Transceiver STS-1/OC-1 Data Transceiver Signal Repeaters TYPICAL APPLICATION LTC1686 5 D 3 DRIVER 100Ω 6 100Ω RECEIVER R LTC1686 2V/DIV CABLE DELAY 1V/DIV 8 R 2 RECEIVER 100Ω 7 100Ω DRIVER D 5V/DIV 400 FT OF CA

📥 Download Datasheet

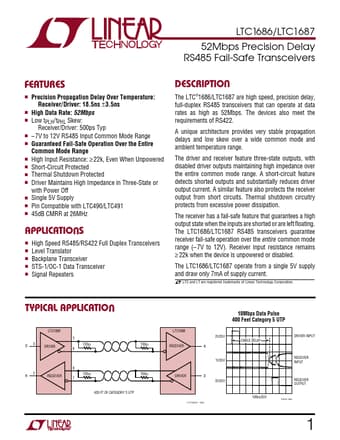

Preview of LTC1687 PDF
