LTC1704, 550kHz Synchronous Switching Regulator Controller Plus Linear Regulator Controller

LTC1704/LTC1704B 550kHz Synchronous Switching Regulator Controller Plus Linear Regulator Controller .

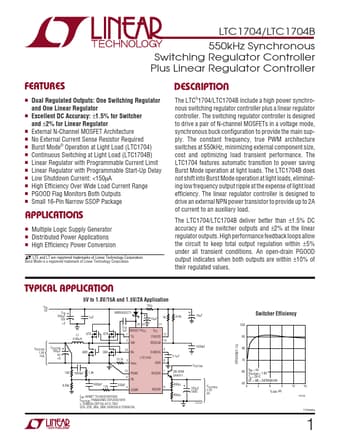

datasheet Preview Page 1 from Datasheet4u.com

LTC1704_LinearTechnology.pdf

LTC1704 Datasheet Preview — Preview of LTC1704 PDF

Datasheet Details

Part number:

LTC1704

Manufacturer:

Linear Technology

File Size:

343.78 KB

Description:

550kHz Synchronous Switching Regulator Controller Plus Linear Regulator Controller

Features

* s s DESCRIPTIO s s s s s s s s s s U APPLICATIO S s s s Dual Regulated Outputs: One Switching Regulator and One Linear Regulator Excellent DC Accuracy: ±1.5% for Switcher and ±2% for Linear Regulator External N-Channel MOSFET Architecture No External Current Sense Resistor Required Burst Mode® O

Applications

* High Efficiency Power Conversion , LTC and LT are registered trademarks of Linear Technology Corporation. Burst Mode is a registered trademark of Linear Technology Corporation. TYPICAL APPLICATIO VIN 5V CIN 330µF 10V ×3 5V to 1.8V/15A and 1.5V/2A Application 10Ω + MBR0520LT1 1µF + + 10µF 11 V
