LTC1772B Datasheet, Controller, Linear

LTC1772B Features

  • Controller n Burst Mode® Operation Disabled for Lower Output Ripple at Light Loads n High Efficiency: Up to 94% n High Output Currents Easily Achieved n Wide VIN Range: 2.5V to 9.8V n Constant Freq

PDF File Details

Part number:

LTC1772B

Manufacturer:

Linear

File Size:

214.56kb

Download:

📄 Datasheet

Description:

Constant frequency current mode step-down dc/dc controller. The LTC®1772B is a constant frequency current mode step-down DC/DC controller providing excellent AC and DC load and line regulation.

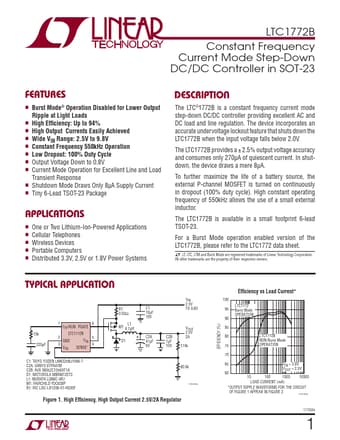

Datasheet Preview: LTC1772B 📥 Download PDF (214.56kb)
Page 2 of LTC1772B Page 3 of LTC1772B

LTC1772B Application

  • Applications n One or Two Lithium-Ion-Powered Applications n Cellular Telephones n Wireless Devices n Portable Computers n Distributed 3.3V, 2.5V or
