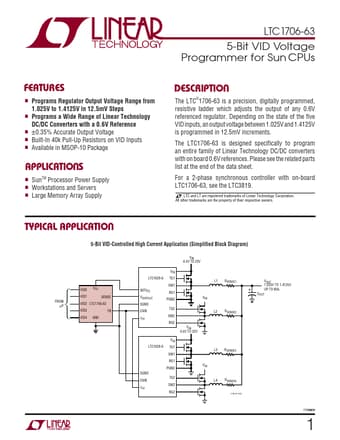

LTC1706-63 Datasheet, Programmer, Linear

LTC1706-63 Features

• Programmer
• Programs Regulator Output Voltage Range from 1.025V to 1.4125V in 12.5mV Steps
• Programs a Wide Range of Linear Technology DC/DC Converters with a 0.6V Reference

PDF File Details

Part number:

LTC1706-63

Manufacturer:

Linear

File Size:

145.66kb

Download:

📄 Datasheet

Description:

5-bit vid voltage programmer. LSB Programmable Input 4th MSB Programmable Input 3rd MSB Programmable Input 2nd MSB Programmable Input Power Supply Regulator Output

TAGS

LTC1706-63

Linear
