LTC1706-19, VID Voltage Programmer

LTC1706-19 VID Voltage Programmer .
2nd MSB Programmable Input 1st MSB Programmable Input Power Supply Ground 1.

LTC1706-19_LinearTechnology.pdf

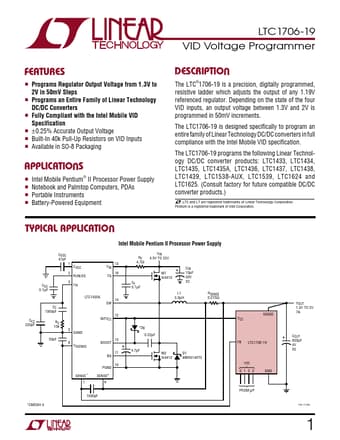

LTC1706-19 Datasheet Preview — Preview of LTC1706-19 PDF

Datasheet Details

Part number:

LTC1706-19

Manufacturer:

Linear Technology

File Size:

212.90 KB

Description:

VID Voltage Programmer

Features

* s s DESCRIPTIO s s s s Programs Regulator Output Voltage from 1.3V to 2V in 50mV Steps Programs an Entire Family of Linear Technology DC/DC Converters Fully Compliant with the Intel Mobile VID Specification ± 0.25% Accurate Output Voltage Built-In 40k Pull-Up Resistors on VID Inputs Available in

Applications

* s s s s Intel Mobile Pentium® II Processor Power Supply Notebook and Palmtop Computers, PDAs Portable Instruments Battery-Powered Equipment TYPICAL APPLICATIO COSC 47pF 1 2 3 CSS 0.1µF COSC RUN/SS ITH LTC1435A CC 1000pF CC2 220pF RC 10k 50pF Intel Mobile Pentium II Processor Power Supply RF 4.7Ω
