LTC1730-4.2 - Lithium-Ion Battery Pulse Charger

Product Overview

Linear

Part number	LTC1730-4.2
Manufacturer	Linear
File Size	155.56 KB
Description	Lithium-Ion Battery Pulse Charger
Datasheet	LTC1730-4.2 Datasheet
Note	This datasheet PDF includes multiple part numbers: LTC1730-4.2, LTC1730-4. Please refer to the document for exact specifications by model.

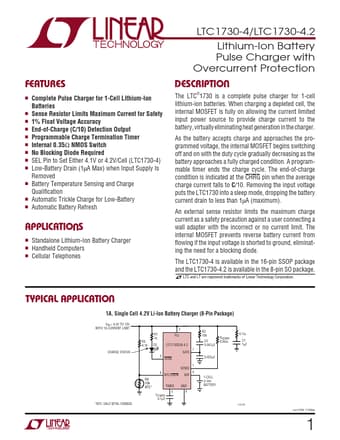

Additional preview pages of the LTC1730-4.2 datasheet.

s Complete Pulse Charger for 1-Cell Lithium-Ion Batteries s Sense Resistor Limits Maximum Current for Safety s 1% Float Voltage Accuracy s End-of-Charge (C/10) Detection Output s Programmable Charge Termination Timer s Internal 0.35Ω NMOS Switch s No Blocking Diode Required s SEL Pin to Set Either 4.1V or 4.2V/Cell (LTC1730-4) s Low-Battery Drain (1µA Max) when Input Supply Is Removed s Battery Temperature Sensing and Charge Qualification s Automatic Trickle Charge for Low-Battery s Automatic Ba.
