LTC1771E, Low Quiescent Current High Efficiency Step-Down DC/DC Controller

Final Electrical Specifications LTC1771 Low Quiescent Current High Efficiency Step-Down DC/DC Controller .

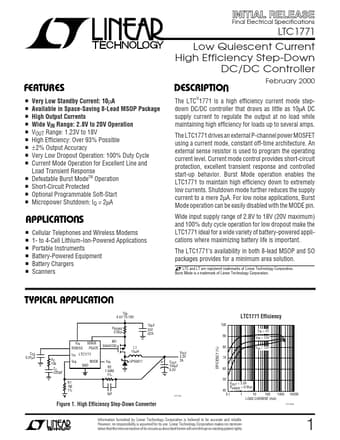

datasheet Preview Page 1 from Datasheet4u.com

LTC1771E_LinearTechnology.pdf

LTC1771E Datasheet Preview — Preview of LTC1771E PDF

Datasheet Details

Part number:

LTC1771E

Manufacturer:

Linear Technology

File Size:

205.33 KB

Description:

Low Quiescent Current High Efficiency Step-Down DC/DC Controller

Features

* s s s s s s s s s DESCRIPTIO February 2000 s s s s Very Low Standby Current: 10µA Available in Space-Saving 8-Lead MSOP Package High Output Currents Wide VIN Range: 2.8V to 20V Operation VOUT Range: 1.23V to 18V High Efficiency: Over 93% Possible ± 2% Output Accuracy Very Low Dropout Operation:

Applications

* Burst Mode operation can be easily disabled with the MODE pin. Wide input supply range of 2.8V to 18V (20V maximum) and 100% duty cycle operation for low dropout make the LTC1771 ideal for a wide variety of battery-powered applications where maximizing battery life is important. The LTC1771’s avail
