LTC1740, 14-Bit 6Msps Sampling ADC

LTC1740 14-Bit, 6Msps, Sampling ADC www.DataSheet4U.com .

datasheet Preview Page 1 from Datasheet4u.com

LTC1740_LinearTechnology.pdf

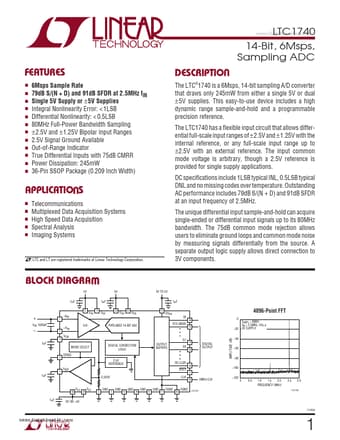

LTC1740 Datasheet Preview — Preview of LTC1740 PDF

Datasheet Details

Part number:

LTC1740

Manufacturer:

Linear Technology

File Size:

819.04 KB

Description:

14-Bit 6Msps Sampling ADC

Features

* s s s s s s s s s s s s DESCRIPTIO 6Msps Sample Rate 79dB S/(N + D) and 91dB SFDR at 2.5MHz fIN Single 5V Supply or ± 5V Supplies Integral Nonlinearity Error: < 1LSB Differential Nonlinearity: < 0.5LSB 80MHz Full-Power Bandwidth Sampling ± 2.5V and ± 1.25V Bipolar Input Ranges 2.5V Signal Ground A

Applications

* DC specifications include 1LSB typical INL, 0.5LSB typical DNL and no missing codes over temperature. Outstanding AC performance includes 79dB S/(N␣ +␣ D) and 91dB SFDR at an input frequency of 2.5MHz. The unique differential input sample-and-hold can acquire single-ended or differential input sign
