LTC1852

Sampling ADCs

LTC1852 Features

* Flexible 8-Channel Multiplexer Single-Ended or Differential Inputs Two Gain Ranges Unipolar or Bipolar Operation n Scan Mode and Programmable Sequencer Eliminate Configuration Software Overhead n Low Power: 3mW at 250ksps www.DataSheet4U.com n 2.7V to 5.5V Supply Range n Internal or External Referenc

LTC1852 General Description

The 10-bit LTC®1852 and 12-bit LTC1853 are complete 8-channel data acquisition systems. They include a flexible 8-channel multiplexer, a 400ksps successive approximation analog-to-digital converter, an internal reference and a parallel output interface. The multiplexer can be configured for single-end.

LTC1852 Datasheet (276.92 KB)

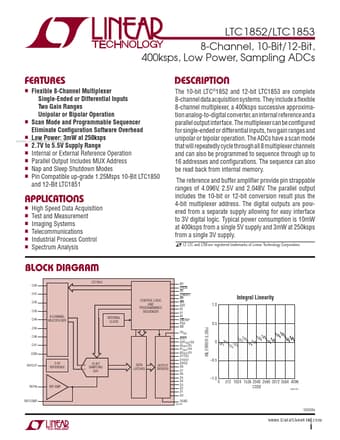

Preview of LTC1852 PDF

Datasheet Details

Part number:

LTC1852

Manufacturer:

Linear Technology

File Size:

276.92 KB

Description:

Sampling adcs.
