LTC1863L

12-/16-Bit 8-Channel 175ksps ADCs

LTC1863L Features

* n Sample Rate: 175ksps n 16-Bit No Missing Codes and ±3LSB Max INL n 8-Channel Multiplexer with: n Single Ended or Differential Inputs and n Unipolar or Bipolar Conversion Modes n SPI/MICROWIRE Serial I/O n 2.7V Guaranteed Supply Voltage n Pin Compatible with LTC1863/LTC1867 n True Differential Inpu

LTC1863L General Description

The LTC®1863L/LTC1867L are pin compatible, 8-channel 12-/16-bit A/D converters with serial I/O and an internal reference. The 8-channel input multiplexer can be configured for either single-ended or differential inputs and unipolar or bipolar conversions (or combinations thereof). The ADCs convert 0.

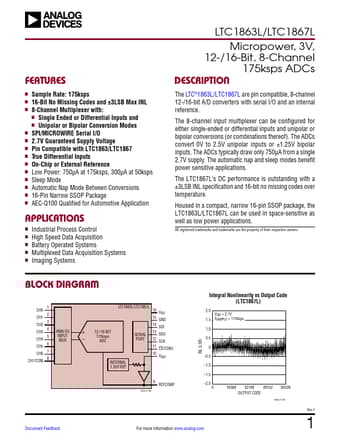

LTC1863L Datasheet (594.89 KB)

Preview of LTC1863L PDF

Datasheet Details

Part number:

LTC1863L

Manufacturer:

Analog Devices ↗

File Size:

594.89 KB

Description:

12-/16-bit 8-channel 175ksps adcs.
