LTC1864 Datasheet, Adcs, Linear

LTC1864 Features

• Adcs n 16-Bit 250ksps ADCs in MSOP Package n Single 5V Supply n Low Supply Current: 850μA (Typ) n Auto Shutdown Reduces Supply Current to 2μA at 1ksps n True Differential Inputs n 1-Channel

PDF File Details

Part number:

LTC1864

Manufacturer:

Linear

File Size:

377.78kb

Download:

📄 Datasheet

Description:

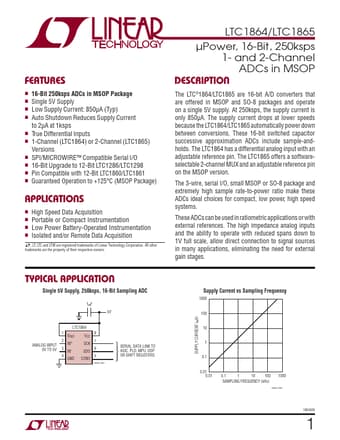

250ksps 1- and 2-channel adcs. The LTC®1864/LTC1865 are 16-bit A/D converters that are offered in MSOP and SO-8 packages and operate on a single 5V supply. At 250ks

LTC1864 Application

• Applications n High Speed Data Acquisition n Portable or Compact Instrumentation n Low Power Battery-Operated Instrumentation n Isolated and/or Remo
