LTC1864L

1- and 2-Channel ADCs

LTC1864L Features

* 16-Bit 150ksps ADCs in MSOP Package

* Single 3V Supply

* Low Supply Current: 450µA (Typ)

* Auto Shutdown Reduces Supply Current to 10µA at 1ksps

* True Differential Inputs

* 1-Channel (LTC1864L) or 2-Channel (LTC1865L) Versions

* SPI/MICROWIRETM Compatible Serial I/O

LTC1864L Datasheet (357.76 KB)

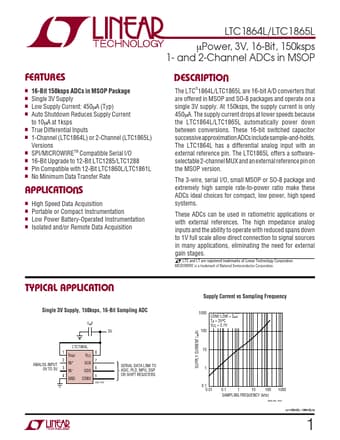

Preview of LTC1864L PDF

Datasheet Details

Part number:

LTC1864L

Manufacturer:

Linear

File Size:

357.76 KB

Description:

1- and 2-channel adcs.
