LTC1861L - 1- and 2-Channel ADCs

LTC1861L Description

U U LTC1860L/LTC1861L µPower, 3V, 12-Bit, 150ksps 1- and 2-Channel ADCs in MSOP .

LTC1861L Features

* s 12-Bit 150ksps ADCs in MSOP Package s Single 3V Supply s Low Supply Current: 450µA (Typ) s Auto Shutdown Reduces Supply Current to 10µA at 1ksps s True Differential Inputs s 1-Channel (LTC1860L) or 2-Channel (LTC1861L) Versions s SPI/MICROWIRETM Compatible Serial I/O s High Speed Upgrade to LTC128

LTC1861L Applications

* or with external references. The high impedance analog inputs and the ability to operate with reduced spans down to 1V full scale allow direct connection to signal sources in many applications, eliminating the need for external gain stages. , LTC and LT are registered trademarks of Linear Technology

📥 Download Datasheet

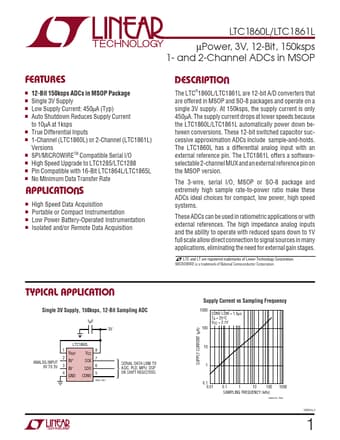

Preview of LTC1861L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LTC1861L
Manufacturer
Linear
File Size
234.35 KB
Datasheet
LTC1861L-Linear.pdf
Description
1- and 2-Channel ADCs
