LTC1860

1- and 2-Channel ADCs

LTC1860 Features

* nn 12-Bit 250ksps ADCs in MSOP Package nn Single 5V Supply nn Low Supply Current: 850µA (Typ) nn Auto Shutdown Reduces Supply Current to 2µA at 1ksps nn True Differential Inputs nn 1-Channel (LTC1860) or 2-Channel (LTC1861) Versions nn SPI/MICROWIRETM Compatible Serial I/O nn High Speed Upgrade to L

LTC1860 General Description

The LTC®1860/LTC1861 are 12-bit A/D converters that are offered in MSOP and SO-8 packages and operate on a single 5V supply. At 250ksps, the supply current is only 850µA. The supply current drops at lower speeds because the LTC1860/LTC1861 automatically power down to a typical supply current of 1nA .

LTC1860 Datasheet (368.29 KB)

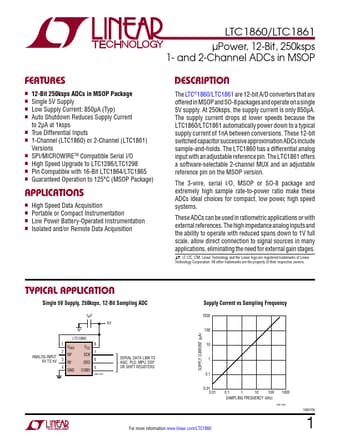

Preview of LTC1860 PDF

Datasheet Details

Part number:

LTC1860

Manufacturer:

Linear

File Size:

368.29 KB

Description:

1- and 2-channel adcs.
