LTC2290 10Msps Low Power 3V ADC

Linear Technology

LTC2290 Description

U U .

LTC2290 Features

* Integrated Dual 12-Bit ADCs
* Sample Rate: 10Msps
* Single 3V Supply (2.7V to 3.4V)
* Low Power: 120mW
* 71.3dB SNR
* 90dB SFDR
* 110dB Channel Isolation
* Multiplexed or Separate Data Bus
* Flexible Input: 1VP-P to 2VP-P Range
* 575MHz Full Power Bandwidth

LTC2290 Applications

* with AC performance that includes 71.3dB SNR and 90dB SFDR for signals well beyond the Nyquist frequency. DC specs include ±0.3LSB INL (typ), ±0.15LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 0.25LSBRMS. A single 3V supply allows low power operation. A separate

📥 Download Datasheet

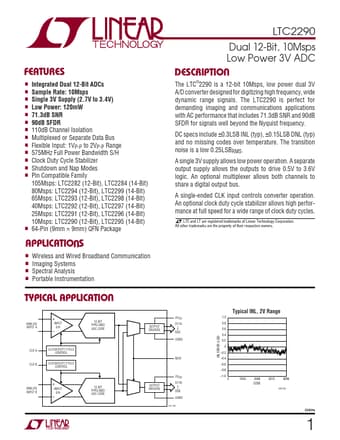

LTC2290 Datasheet Preview — Preview of LTC2290 PDF

Datasheet Details

Part number: LTC2290
Manufacturer: Linear Technology
File Size: 757.34 KB
Datasheet: LTC2290_LinearTechnology.pdf
Description: 10Msps Low Power 3V ADC
