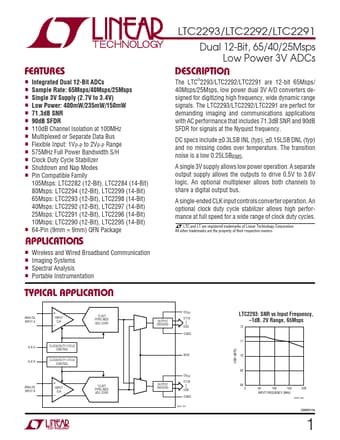

LTC2291 Datasheet Preview — Preview of LTC2291 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LTC2291
Manufacturer	Linear Technology
File Size	1.07 MB
Description	Low Power 3V ADCs
Datasheet	LTC2291_LinearTechnology.pdf

LTC2291 Product details

Features

Integrated Dual 12-Bit ADCs.
Sample Rate: 65Msps/40Msps/25Msps.
Single 3V Supply (2.7V to 3.4V).
Low Power: 400mW/235mW/150mW.
71.3dB SNR.
90dB SFDR.
110dB Channel Isolation at 100MHz.
Multiplexed or Separate Data Bus.
Flexible Input: 1VP-P to 2VP-P Range.
575MHz Full Power Bandwidth S/H.
Clock Duty Cycle Stabilizer.
Shutdown and Nap Modes.
Pin Compatible Family 105Msps: LTC2282 (12-Bit), LTC2284 (14-Bit) 80Msps: LTC2294 (12-Bit),.
