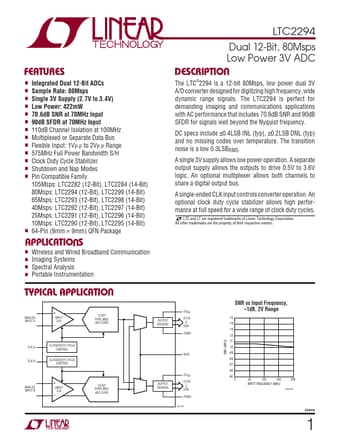

LTC2294 Datasheet Preview — Preview of LTC2294 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LTC2294
Manufacturer	Linear Technology
File Size	717.01 KB
Description	80Msps Low Power 3V ADC
Datasheet	LTC2294_LinearTechnology.pdf

LTC2294 Product details

Features

Integrated Dual 12-Bit ADCs.
Sample Rate: 80Msps.
Single 3V Supply (2.7V to 3.4V).
Low Power: 422mW.
70.6dB SNR at 70MHz Input.
90dB SFDR at 70MHz Input.
110dB Channel Isolation at 100MHz.
Multiplexed or Separate Data Bus.
Flexible Input: 1VP-P to 2VP-P Range.
575MHz Full Power Bandwidth S/H.
Clock Duty Cycle Stabilizer.
Shutdown and Nap Modes.
Pin Compatible Family 105Msps: LTC2282 (12-Bit), LTC2284 (14-Bit) 80Msps: LTC2294 (12-B.
