LTC2293, LTC2291, Low Power 3V ADCs

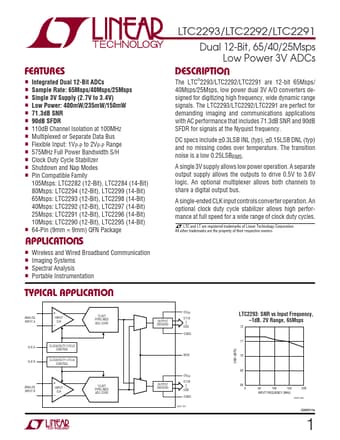

datasheet Preview Page 1 from Datasheet4u.com

LTC2291_LinearTechnology.pdf

LTC2293 Datasheet Preview — This datasheet PDF includes multiple part numbers: LTC2293, LTC2291. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LTC2293, LTC2291

Manufacturer:

Linear Technology

File Size:

1.07 MB

Description:

Low Power 3V ADCs

Note:

This datasheet PDF includes multiple part numbers: LTC2293, LTC2291.
Please refer to the document for exact specifications by model.

Features

* Integrated Dual 12-Bit ADCs
* Sample Rate: 65Msps/40Msps/25Msps
* Single 3V Supply (2.7V to 3.4V)
* Low Power: 400mW/235mW/150mW
* 71.3dB SNR
* 90dB SFDR
* 110dB Channel Isolation at 100MHz
* Multiplexed or Separate Data Bus
* Flexible Input: 1VP-P to 2VP-P Rang

Applications

* with AC performance that includes 71.3dB SNR and 90dB SFDR for signals at the Nyquist frequency. DC specs include ±0.3LSB INL (typ), ±0.15LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 0.25LSBRMS. A single 3V supply allows low power operation. A separate output su
