LTC2610, LTC2620 - 3V/5V Octal 12-bit Rail-to-rail DAC

Name: LTC2610
SKU: LTC2610-587652

Linear Technology

📥 Download Datasheet

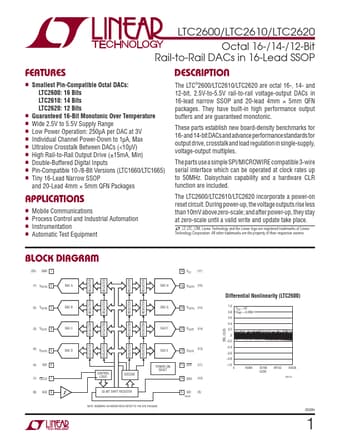

LTC2610 Datasheet Preview — This datasheet PDF includes multiple part numbers: LTC2610, LTC2620. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LTC2610, LTC2620
Manufacturer	Linear Technology
File Size	342.70 KB
Description	3V/5V Octal 12-bit Rail-to-rail DAC
Datasheet	LTC2620_LinearTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: LTC2610, LTC2620. Please refer to the document for exact specifications by model.

LTC2610 Product details

Description

The LTC®2600/LTC2610/LTC2620 are octal 16-, 14- and 12-bit, 2.5V-to-5.5V rail-to-rail voltage-output DACs in 16-lead narrow SSOP and 20-lead 4mm × 5mm QFN packages.

Features

n Smallest Pin-Compatible Octal DACs: LTC2600: 16 Bits LTC2610: 14 Bits LTC2620: 12 Bits n Guaranteed 16-Bit Monotonic Over Temperature n Wide 2.5V to 5.5V Supply Range n Low Power Operation: 250μA per DAC at 3V n Individual Channel Power-Down to 1μA, Max n Ultralow Crosstalk Between DACs (.
