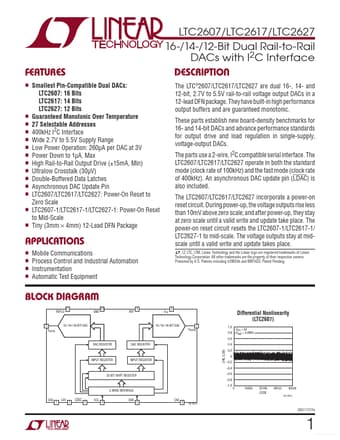

LTC2617, LTC2607, 16-/14-/12-Bit Dual Rail-to-Rail DACs

.
The LTC®2607/LTC2617/LTC2627 are dual 16-, 14- and 12-bit, 2.

LTC2607_LinearTechnology.pdf

LTC2617 Datasheet Preview — This datasheet PDF includes multiple part numbers: LTC2617, LTC2607. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LTC2617, LTC2607

Manufacturer:

Linear Technology

File Size:

312.81 KB

Description:

16-/14-/12-Bit Dual Rail-to-Rail DACs

Note:

This datasheet PDF includes multiple part numbers: LTC2617, LTC2607.
Please refer to the document for exact specifications by model.

Features

* Smallest Pin-Compatible Dual DACs: LTC2607: 16 Bits LTC2617: 14 Bits LTC2627: 12 Bits n Guaranteed Monotonic Over Temperature n 27 Selectable Addresses n 400kHz I2C Interface n Wide 2.7V to 5.5V Supply Range n Low Power Operation: 260µA per DAC at 3V n Power Down to 1µA, Max n High Ra

Applications

* n n n n Mobile Communications Process Control and Industrial Automation Instrumentation Automatic Test Equipment Block Diagram REFLO 11 GND 10 REF 9 VCC 8 Differential Nonlinearity (LTC2607) VOUTB 7 1.0 0.8 0.6 VCC = 5V VREF = 4.096V 12 VOUTA 12-/14-/16-BIT DAC 12-/14-/16-BIT DAC DAC REG
