LTC2614

Rail-to-rail Voltage Output DACs

LTC2614 Features

* n Smallest Pin Compatible Quad 16-Bit DAC: LTC2604: 16-Bits LTC2614: 14-Bits LTC2624: 12-Bits n Guaranteed 16-Bit Monotonic Over Temperature n Separate Reference Inputs for each DAC n Wide 2.5V to 5.5V Supply Range n Low Power Operation: 250μA per DAC at 3V n Individual DAC Power-Down to 1μA, Max n

LTC2614 General Description

The LTC®2604/LTC2614/LTC2624 are quad 16-,14- and 12-bit 2.5V to 5.5V rail-to-rail voltage output DACs in 16-lead narrow SSOP packages. These parts have separate reference inputs for each DAC. They have built-in high performance output buffers and are guaranteed monotonic. These parts establish adva.

LTC2614 Datasheet (301.39 KB)

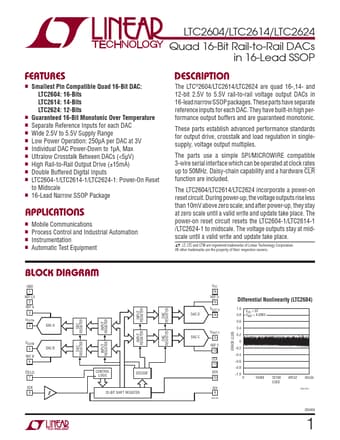

Preview of LTC2614 PDF

Datasheet Details

Part number:

LTC2614

Manufacturer:

Linear Technology

File Size:

301.39 KB

Description:

Rail-to-rail voltage output dacs.
