Description

LTC2601/LTC2611/LTC2621 16-/14-/12-Bit Rail-to-Rail DACs in 10-Lead DFN .

📥 Download Datasheet

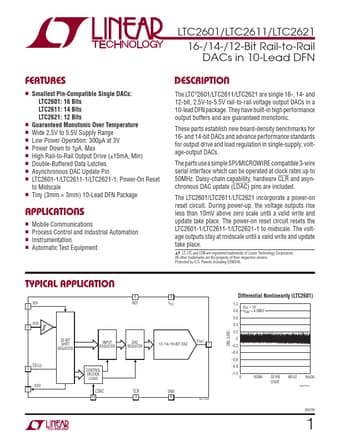

LTC2611 Datasheet Preview — This datasheet PDF includes multiple part numbers: LTC2611, LTC2621. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: LTC2611, LTC2621
Manufacturer: Linear Technology
File Size: 231.82 KB
Datasheet: LTC2621_LinearTechnology.pdf
Description: Rail-to-Rail DAC
Note: This datasheet PDF includes multiple part numbers: LTC2611, LTC2621.
Please refer to the document for exact specifications by model.

Features

* s DESCRIPTIO s s s s s s s s Smallest Pin-Compatible Single DACs: LTC2601: 16 Bits LTC2611: 14 Bits LTC2621: 12 Bits Guaranteed Monotonic Over Temperature Wide 2.5V to 5.5V Supply Range Low Power Operation: 300µA at 3V Power Down to 1µA, Max High Rail-to-Rail Output Drive (± 15mA, Min) Double-Buf
