LTC2801 Datasheet, Transceivers, Linear Technology

LTC2801 Features

  • Transceivers n 1.8V to 5.5V Supply Voltage n Single and Dual Transceivers n High-Speed Operation 1Mbps for 250pF/3kΩ Load (LTC2802, LTC2804) 250kbps for 1nF/3kΩ Load 100kbps for 2.5nF/3kΩ TIA/EIA-23

PDF File Details

Part number:

LTC2801

Manufacturer:

Linear Technology

File Size:

378.76kb

Download:

📄 Datasheet

Description:

Single and dual transceivers. The LTC®2801/LTC2802/LTC2803/LTC2804 are single and dual RS-232 transceivers in narrow SSOP and chip-scale DFN packages. All operate

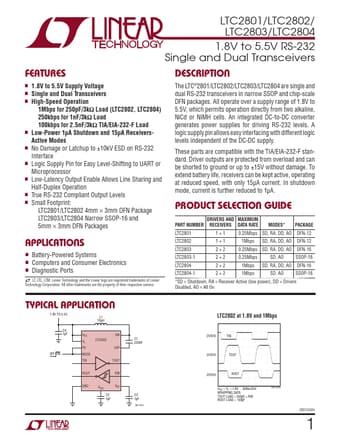

Datasheet Preview: LTC2801 📥 Download PDF (378.76kb)
Page 2 of LTC2801 Page 3 of LTC2801

LTC2801 Application

  • Applications n Battery-Powered Systems n Computers and Consumer Electronics n Diagnostic Ports L, LT, LTC, LTM, Linear Technology and the Linear log
