LTC2802, LTC2801 Single and Dual Transceivers

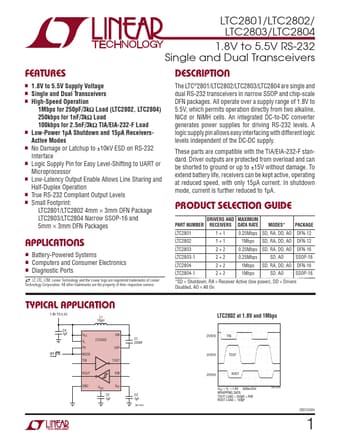

📥 Download Datasheet  Datasheet Preview Page 1

Description

LTC2801/LTC2802/ LTC2803/LTC2804 1.8V to 5.5V RS-232 Single and Dual Transceivers .
The LTC®2801/LTC2802/LTC2803/LTC2804 are single and dual RS-232 transceivers in narrow SSOP and chip-scale DFN packages.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LTC2802, LTC2801. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LTC2802, LTC2801
Manufacturer
Linear Technology
File Size
378.76 KB
Datasheet
LTC2801_LinearTechnology.pdf
Description
Single and Dual Transceivers
Note
This datasheet PDF includes multiple part numbers: LTC2802, LTC2801.
Please refer to the document for exact specifications by model.

Features

* n 1.8V to 5.5V Supply Voltage n Single and Dual Transceivers n High-Speed Operation 1Mbps for 250pF/3kΩ Load (LTC2802, LTC2804) 250kbps for 1nF/3kΩ Load 100kbps for 2.5nF/3kΩ TIA/EIA-232-F Load n Low-Power 1µA Shutdown and 15µA ReceiversActive Modes n No Damage or Latchup to ±10kV ESD on RS-232 Inte
