LTC2863-1, LTC2862 - RS485/RS422 Transceivers

LTC2863-1 Description

LTC2862/LTC2863/ LTC2864/LTC2865 ±60V Fault Protected 3V to 5.5V RS485/RS422 Transceivers .
The LTC®2862/LTC2863/LTC2864/LTC2865 are low power, 20Mbps or 250kbps RS485/RS422 transceivers operating on 3V to 5.

LTC2863-1 Features

* n Protected from Overvoltage Line Faults to ±60V n 3V to 5.5V Supply Voltage n 20Mbps or Low EMI 250kbps Data Rate n ±15kV ESD Interface Pins, ±8kV All Other Pins n Extended Common Mode Range: ±25V n Guaranteed Failsafe Receiver Operation n High Input Impedance Supports 256 Nodes n 1.65V to 5.5V Log

LTC2863-1 Applications

* n Supervisory Control and Data Acquisition (SCADA) n Industrial Control and Instrumentation Networks n Automotive and Transportation Electronics n Building Automation, Security Systems and HVAC n Medical Equipment n Lighting and Sound System Control L, LT, LTC, LTM, Linear Technology the Linear logo

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LTC2863-1, LTC2862. Please refer to the document for exact specifications by model.

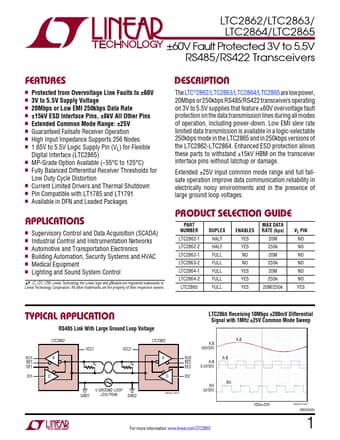

datasheet Preview Page 2 datasheet Preview Page 3
