LTC2861 Datasheet, Transceivers, Linear Technology

LTC2861 Features

  • Transceivers Integrated, Logic-Selectable 120Ω Termination Resistor
  • 20Mbps Max Data Rate
  • No Damage or Latchup to ESD: ±15kV HBM
  • High Input Impedance Supports 256 Nodes

PDF File Details

Part number:

LTC2861

Manufacturer:

Linear Technology

File Size:

322.80kb

Download:

📄 Datasheet

Description:

20mbps rs485 transceivers. The LTC®2859 and LTC2861 are low power, 20Mbps RS485/422 transceivers operating on 5V supplies. The receiver includes a logic-selecta

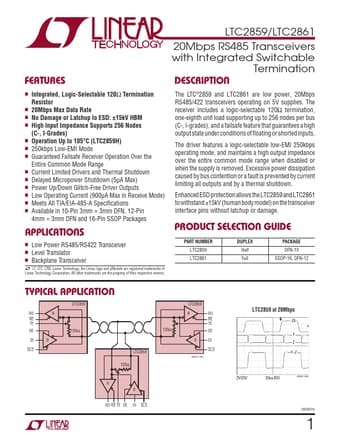

Datasheet Preview: LTC2861 📥 Download PDF (322.80kb)
Page 2 of LTC2861 Page 3 of LTC2861

LTC2861 Application

  • Applications
  • Low Power RS485/RS422 Transceiver Level Translator Backplane Transceiver PRODUCT SELECTION GUIDE PART N
