LTC2804, LTC2801 Datasheet - Linear Technology

LTC2804 Single and Dual Transceivers

The LTC®2801/LTC2802/LTC2803/LTC2804 are single and dual RS-232 transceivers in narrow SSOP and chip-scale DFN packages. All operate over a supply range of 1.8V to 5.5V, which permits operation directly from two alkaline, NiCd or NiMH cells. An integrated DC-to-DC converter generates power supplies .

LTC2804 Features

* n 1.8V to 5.5V Supply Voltage n Single and Dual Transceivers n High-Speed Operation 1Mbps for 250pF/3kΩ Load (LTC2802, LTC2804) 250kbps for 1nF/3kΩ Load 100kbps for 2.5nF/3kΩ TIA/EIA-232-F Load n Low-Power 1µA Shutdown and 15µA ReceiversActive Modes n No Damage or Latchup to ±10kV ESD on RS-232 Inte

LTC2801_LinearTechnology.pdf

This datasheet PDF includes multiple part numbers: LTC2804, LTC2801. Please refer to the document for exact specifications by model.

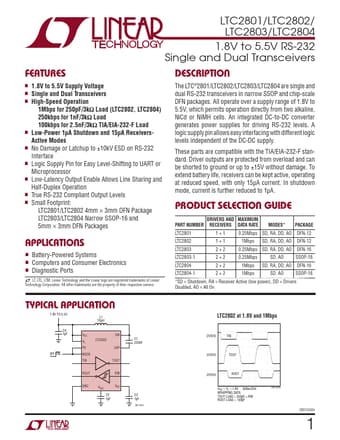

LTC2804 Datasheet Preview Page 2 LTC2804 Datasheet Preview Page 3

Datasheet Details

Part number:

LTC2804, LTC2801

Manufacturer:

Linear Technology

File Size:

378.76 KB

Description:

Single and dual transceivers.

Note:

This datasheet PDF includes multiple part numbers: LTC2804, LTC2801.
Please refer to the document for exact specifications by model.
