LTC2856-1, 20Mbps and Slew Rate Limited 15kV RS485/RS422 Transceivers

LTC2856-1/LTC2856-2 LTC2857-1/LTC2857-2 LTC2858-1/LTC2858-2 20Mbps and Slew Rate Limited 15kV RS485/RS422 Transceivers .
The LTC®2856-1, LTC2856-2, LTC2857-1, LTC2857-2, LTC2858-1 and LTC2858-2 are low power, RS485/RS422 transceivers operating on 5V supplies at maximum d.

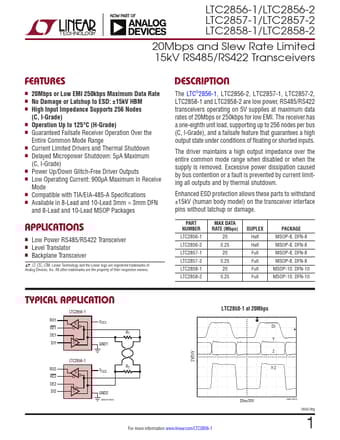

datasheet Preview Page 1 from Datasheet4u.com

LTC2856-1_LinearTechnology.pdf

LTC2856-1 Datasheet Preview — Preview of LTC2856-1 PDF

Datasheet Details

Part number:

LTC2856-1

Manufacturer:

Linear Technology

File Size:

314.63 KB

Description:

20Mbps and Slew Rate Limited 15kV RS485/RS422 Transceivers

Features

* nn 20Mbps or Low EMI 250kbps Maximum Data Rate nn No Damage or Latchup to ESD: ±15kV HBM nn High Input Impedance Supports 256 Nodes (C, I-Grade) nn Operation Up to 125°C (H-Grade) nn Guaranteed Failsafe Receiver Operation Over the Entire Common Mode Range nn Current Limited Drivers and Thermal Shutd
