LTC2854 - 3.3V 20Mbps RS485/RS422 Transceivers

Linear Technology

The LTC2854 by Linear Technology is a 3.3V 20Mbps RS485/RS422 Transceivers. Below is the official datasheet preview.

📥 Download Datasheet

LTC2854 3.3V 20Mbps RS485/RS422 Transceivers by Linear Technology - Datasheet Preview — Official preview page of the LTC2854 3.3V 20Mbps RS485/RS422 Transceivers datasheet (Linear Technology).

Datasheet Details

Part number	LTC2854
Manufacturer	Linear Technology
File Size	242.86 KB
Description	3.3V 20Mbps RS485/RS422 Transceivers
Datasheet	LTC2854_LinearTechnology.pdf

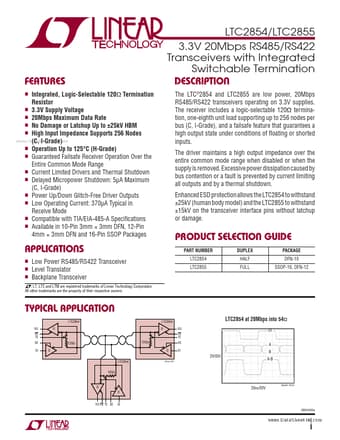

Additional preview pages of the LTC2854 datasheet.

LTC2854 Product details

Description

The LTC®2854 and LTC2855 are low power, 20Mbps RS485/RS422 transceivers operating on 3.3V supplies.

Features

Integrated, Logic-Selectable 120Ω Termination Resistor.
3.3V Supply Voltage.
20Mbps Maximum Data Rate.
No Damage or Latchup Up to ±25kV HBM.
High Input Impedance Supports 256 Nodes www. DataSheet4U. com (C, I-Grade).
Operation Up to 125°C (H-Grade).
Guaranteed Failsafe Receiver Operation Over the Entire Common Mode Range.
Current Limited Drivers and Thermal Shutdown.
Delayed Micropower Shutdown: 5μA Maximum (C, I-Grade).
Power Up/Down Glitch-Free Driver.
