LTC2856-2

20Mbps and Slew Rate Limited 15kV RS485/RS422 Transceivers

LTC2856-2 Features

* nn 20Mbps or Low EMI 250kbps Maximum Data Rate nn No Damage or Latchup to ESD: ±15kV HBM nn High Input Impedance Supports 256 Nodes (C, I-Grade) nn Operation Up to 125°C (H-Grade) nn Guaranteed Failsafe Receiver Operation Over the Entire Common Mode Range nn Current Limited Drivers and Thermal Shutd

LTC2856-2 General Description

The LTC®2856-1, LTC2856-2, LTC2857-1, LTC2857-2, LTC2858-1 and LTC2858-2 are low power, RS485/RS422 transceivers operating on 5V supplies at maximum data rates of 20Mbps or 250kbps for low EMI. The receiver has a one-eighth unit load, supporting up to 256 nodes per bus (C, I-Grade), and a failsafe f.

LTC2856-2 Datasheet (314.63 KB)

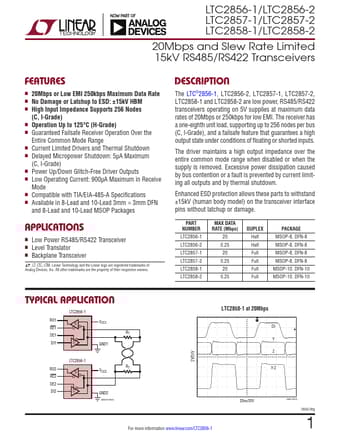

Preview of LTC2856-2 PDF

Datasheet Details

Part number:

LTC2856-2

Manufacturer:

Linear Technology

File Size:

314.63 KB

Description:

20mbps and slew rate limited 15kv rs485/rs422 transceivers.
