LTC3862-1 Datasheet - Linear Technology

LTC3862-1 Step-Up DC/DC Controller

The LTC®3862-1 is a two phase constant frequency, current mode boost and SEPIC controller that drives N-channel power MOSFETs. Two phas.

LTC3862-1 Features

* n Wide VIN Range: 8.5V to 36V Operation n 2-Phase Operation Reduces Input and Output Capacitance n Fixed Frequency, Peak Current Mode Control n 10V Gate Drive for High Voltage MOSFETs n Adjustable Slope Compensation Gain n Adjustable Max Duty Cycle (Up to 96%) n Adjustable Leading Edge Bla

LTC3862-1_LinearTechnology.pdf

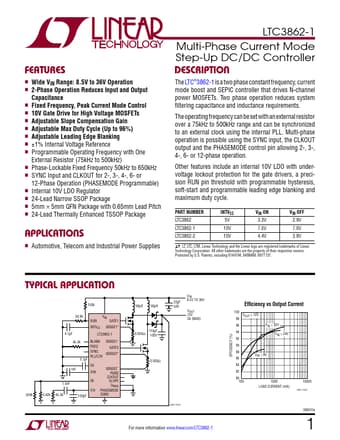

Preview of LTC3862-1 PDF
LTC3862-1 Datasheet Preview Page 2 LTC3862-1 Datasheet Preview Page 3

Datasheet Details

Part number:

LTC3862-1

Manufacturer:

Linear Technology

File Size:

1.54 MB

Description:

Step-up dc/dc controller.
