LTC3861 - Multiphase Step-Down Voltage Mode DC/DC Controller

📥 Download Datasheet

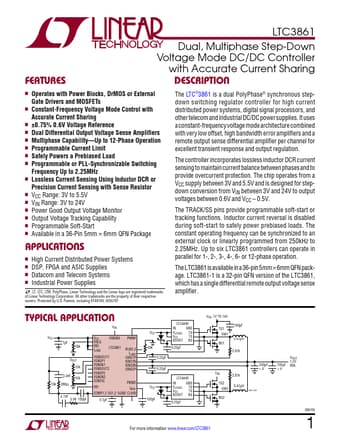

Preview of LTC3861 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number LTC3861
Manufacturer Linear Technology
File Size 948.99 KB
Description Multiphase Step-Down Voltage Mode DC/DC Controller
Datasheet download datasheet LTC3861-LinearTechnology.pdf

LTC3861 Product details

Description

n Operates with Power Blocks, DrMOS or External Gate Drivers and MOSFETs n Constant-Frequency Voltage Mode Control with Accurate Current Sharing n ±0.75% 0.6V Voltage Reference n Dual Differential Output Voltage Sense Amplifiers n Multiphase Capability Up to 12-Phase Operation n Programmable Current Limit n Safely Powers a Prebiased Load n Programmable or PLL-Synchronizable Switching Frequency Up to 2.25MHz n Lossless Current Sensing Using Inductor DCR or Precision Current Sens

Features
