LTC3862

Step-Up DC/DC Controller

LTC3862 Features

* n Wide VIN Range: 4V to 36V Operation n 2-Phase Operation Reduces Input and Output Capacitance n Fixed Frequency, Peak Current Mode Control n 5V Gate Drive for Logic-Level MOSFETs n Adjustable Slope Compensation Gain n Adjustable Max Duty Cycle (Up to 96%) n Adjustable Leading Edge Blanking n ±1% In

LTC3862 General Description

The LTC®3862 is a two phase constant frequency, current mode boost and SEPIC controller that drives N-channel power MOSFETs. Two phase operation reduces system filtering capacitance and inductance requirements. The operating frequency can be set with an external resistor over a 75kHz to 500kHz rang.

LTC3862 Datasheet (0.99 MB)

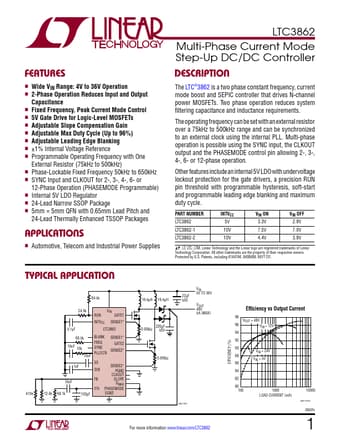

Preview of LTC3862 PDF

Datasheet Details

Part number:

LTC3862

Manufacturer:

Linear Technology

File Size:

0.99 MB

Description:

Step-up dc/dc controller.
