LTC4063

Standalone Linear Li-lon Battery Charger

Linear Technology

LTC4063 Features

* n Charge Current Programmable up to 1A n Integrated 100mA Adjustable Low Dropout Linear Regulator n Charges Single Cell Li-Ion Batteries Directly from USB Port n Preset Charge Voltage with ±0.35% Accuracy n No External MOSFET, Sense Resistor or Blocking Diode Needed n Thermal Regulation Maximizes Ch

LTC4063 General Description

The LTC®4063 is a standalone linear charger for single cell lithium-ion batteries with an adjustable low dropout linear regulator (LDO). The adjustable LDO regulates an output voltage between 1.2V to 4.2V at up to 100mA load current. When the input supply (wall adapter or USB supply) is removed, the.

LTC4063 Datasheet (292.54 KB)

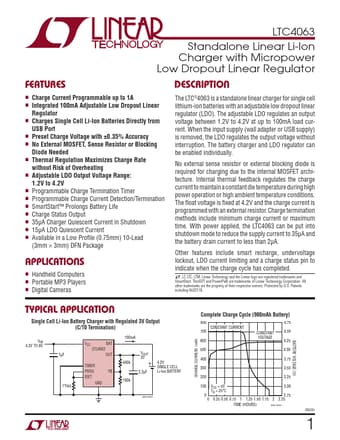

LTC4063 Datasheet Preview — Preview of LTC4063 PDF

Datasheet Details

Part number:

LTC4063

Manufacturer:

Linear Technology

File Size:

292.54 KB

Description:

Standalone linear li-lon battery charger.
