LTC4065-4.4, LTC4065-44 Standalone 750mA Li-Ion Battery Charge

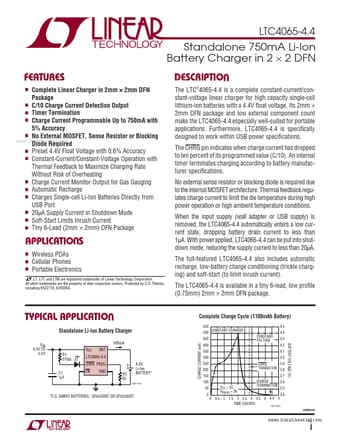

📥 Download Datasheet  Datasheet Preview Page 1

Description

LTC4065-4.4 Standalone 750mA Li-Ion Battery Charger in 2 × 2 DFN .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LTC4065-4.4, LTC4065-44. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LTC4065-4.4, LTC4065-44
Manufacturer
Linear Technology
File Size
195.80 KB
Datasheet
LTC4065-44_LinearTechnology.pdf
Description
Standalone 750mA Li-Ion Battery Charge
Note
This datasheet PDF includes multiple part numbers: LTC4065-4.4, LTC4065-44.
Please refer to the document for exact specifications by model.

Features

* Complete Linear Charger in 2mm × 2mm DFN Package
* C/10 Charge Current Detection Output
* Timer Termination
* Charge Current Programmable Up to 750mA with 5% Accuracy
* No External MOSFET, Sense Resistor or Blocking www. DataSheet4U. com Diode Required
* Preset 4.4V Float Voltage w

Applications

* Furthermore, LTC4065-4.4 is specifically designed to work within USB power specifications. The CHRG pin indicates when charge current has dropped to ten percent of its programmed value (C/10). An internal timer terminates charging according to battery manufacturer specifications. No external sense
